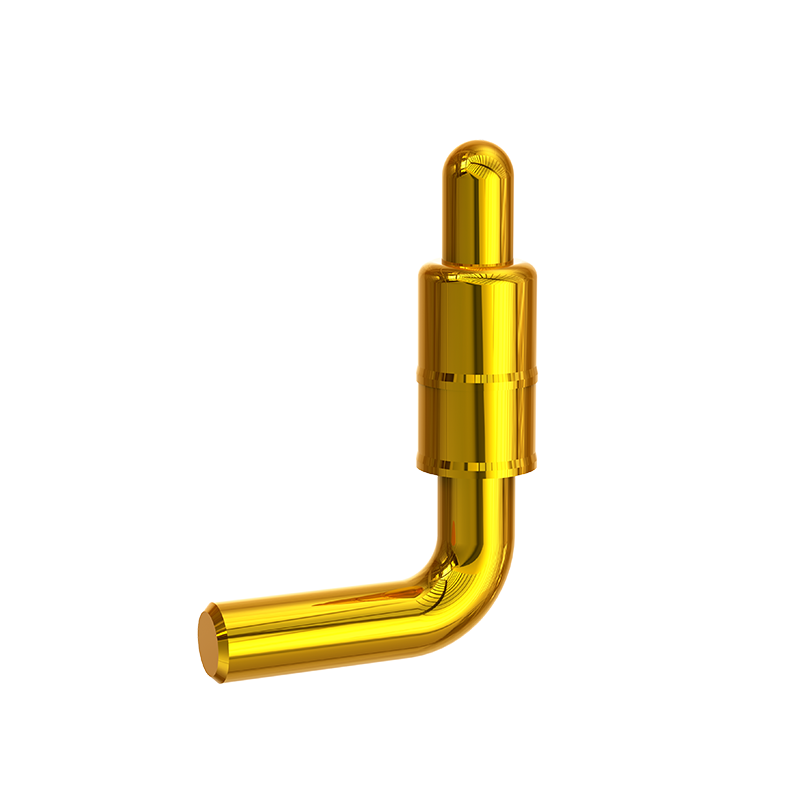

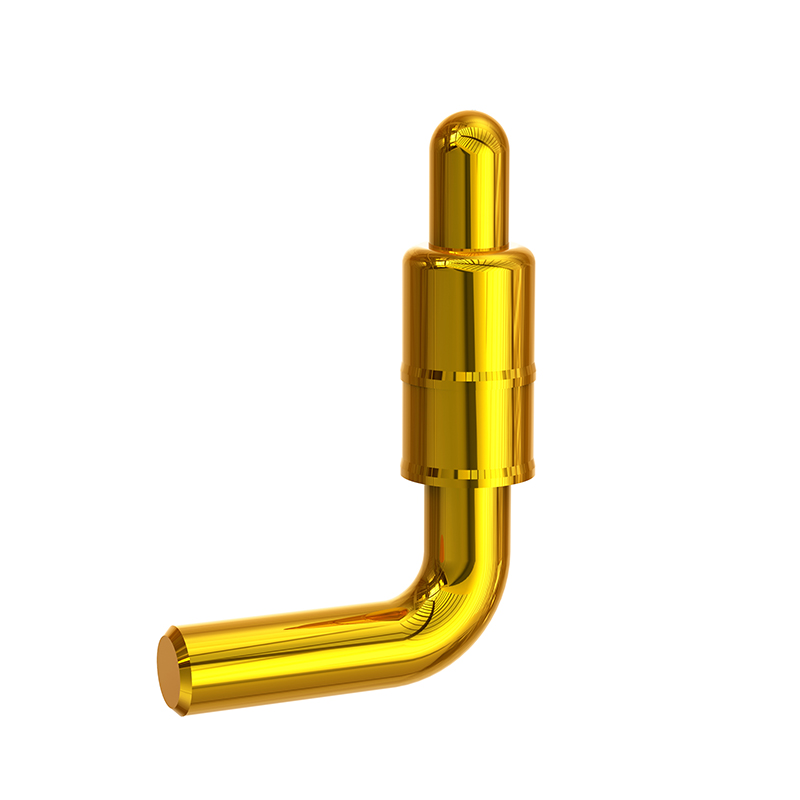

Custom Bending Type Spring Pogo Pins Manufacturers, Supplier

1. Good stability and long using life. 2. Structure is simple and compact. 3. Saving space and easy to connect with PCB.

Send Inquiry

Product Description

Technical Specifications

Parameter Type	Specification Details
Material	Plunger/barrel: Brass Spring: Stainless steel
Electroplating	Plunger: 3 micro-inch minimum Au over 50-120 micro-inch nickel Barrel: 1 micro-inch minimum Au over 50-120 micro-inch nickel Spring: 1 micro-inch minimum Au over 50-120 micro-inch nickel
Electrical specification	Contact electrical resistor: 50 mOhm Max. Rated voltage: 12V DC Max Rated current: 4.0A
Mechanical performance	Life: 10,000 cycle min.

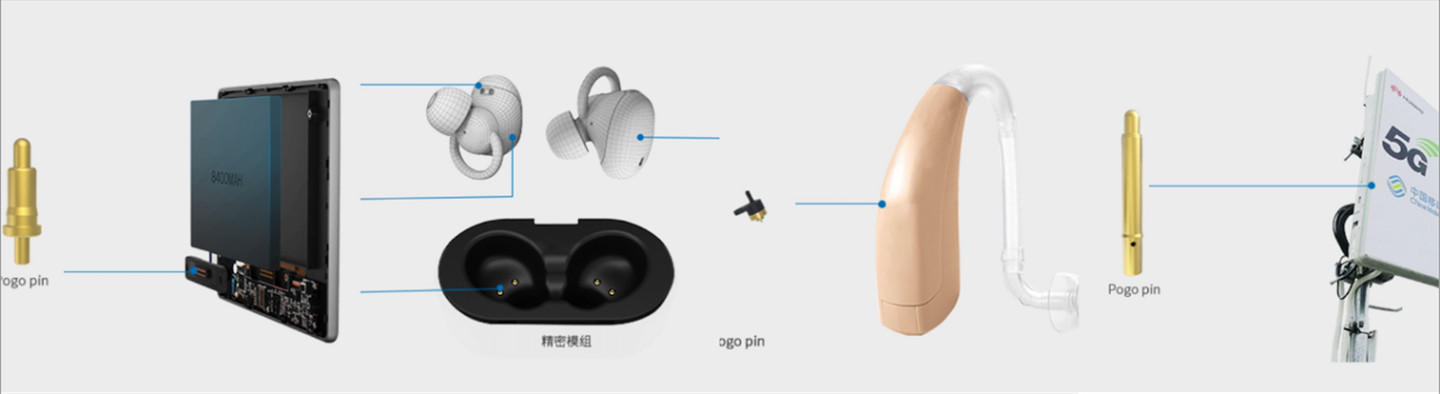

Applications

Intelligent Wearable Devices

Smart watches, smart wristbands, locator devices, Bluetooth headphones, smart shoes, smart glasses, smart backpacks, etc.

Smart Home & Appliances

Smart home hubs, smart home appliances, air purifiers, automatic controllers, and domestic automation solutions.

Medical & Industrial Equipment

Medical equipment, wireless charging systems, data communication systems, telecommunications, automation control, and industrial equipment.

3C Consumer Electronics

Laptops, tablet computers, PDAs, handheld data terminals, and other mobile digital communication electronics.

Aviation & Automotive

Aviation, aerospace, military communication, military electronics, automobiles, vehicle navigation, testing fixtures, and testing equipment.

Frequently Asked Questions

What are the primary materials used in these Pogo Pin connectors?

The plunger and barrel are manufactured from premium brass for excellent electrical conductivity, while the spring is made of robust stainless steel to ensure mechanical longevity and consistent force.

What type of electroplating is applied to the connector components?

The components feature high-grade gold (Au) plating over nickel. Specifically, the plunger has a minimum of 3 micro-inch Au over 50-120 micro-inch nickel, while the barrel and spring feature a minimum of 1 micro-inch Au over 50-120 micro-inch nickel.

What are the electrical limits for these Pogo Pins?

These connectors support a maximum contact resistance of 50 mOhm, a maximum rated voltage of 12V DC, and a maximum rated current of 4.0A.

What is the estimated lifecycle of the connector?

The mechanical performance is designed for high durability, guaranteeing a minimum operational life of 10,000 mating cycles.

Are these connectors suitable for smart wearable devices?

Yes, they are highly optimized for smart wearables including smart watches, fitness wristbands, Bluetooth headphones, smart glasses, and tracking devices due to their compact size and stable connectivity.
