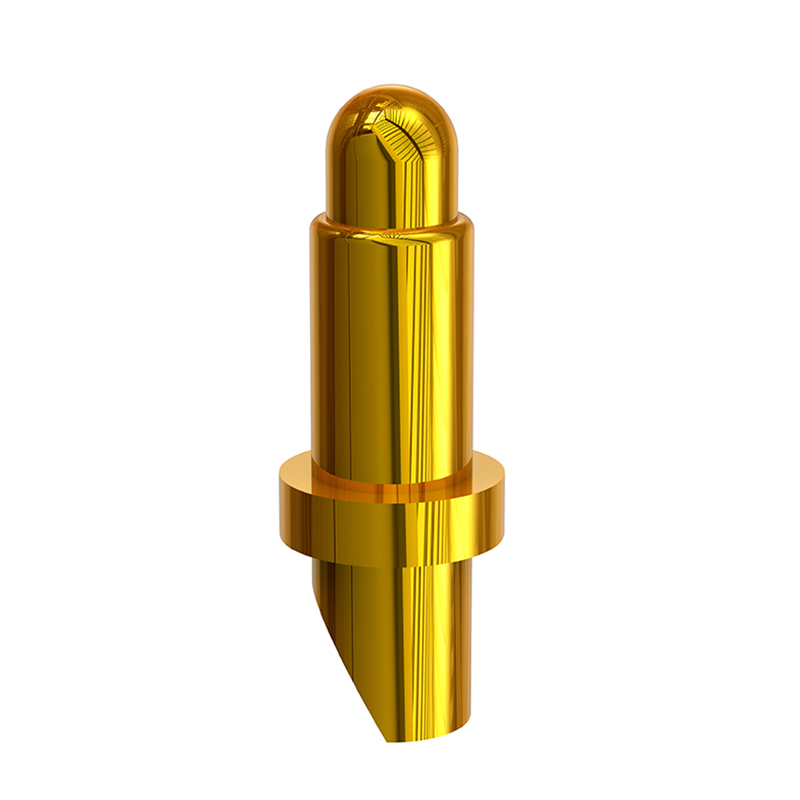

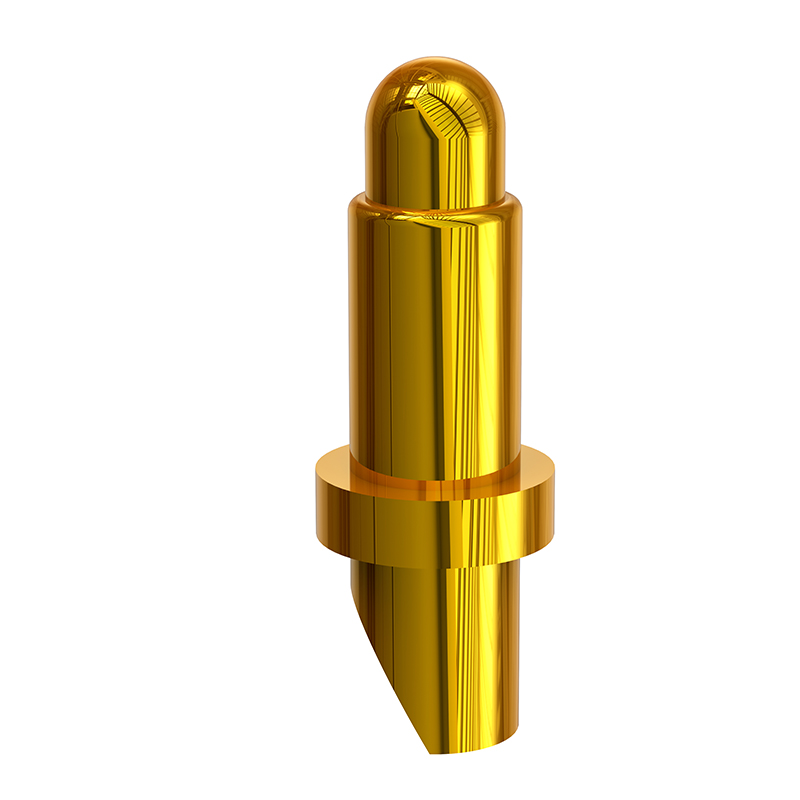

High-Quality Customized Spring Loaded Pogo Pin Manufacturer, Factory

1.Good stability and long using life. 2.Structure is simple and compact. 3.Saving space and easy to connect with PCB.

Send Inquiry

Product Description

Technical Specifications

Parameter	Details & Value
Material	Plunger/barrel: Brass Spring: Stainless steel
Electroplating	Plunger: 10 micro-inch minimum Au over 50-120 micro-inch nickel Barrel: 5 micro-inch minimum Au over 50-120 micro-inch nickel Spring: 1 micro-inch minimum Au over 10-50 micro-inch nickel
Electrical Specification	Contact electrical resistor: 50 mOhm Max. Rated voltage: 5V DC Max Rated current: 1.5A
Mechanical Performance	Life: 10,000 cycle min.

Applications

Intelligent Wearables

Smart watches, smart wristbands, locator devices, Bluetooth headphones, smart shoes, smart glasses, smart backpacks, etc.

Smart Home

Smart home, smart appliances, air purifiers, automatic controllers, etc.

Medical & Industrial

Medical equipment, wireless charging equipment, data communication equipment, telecommunications equipment, automation and industrial equipment, etc.

3C Consumer Electronics

Laptops, tablets, PDAs, handheld data terminals, etc.

Aviation & Automotive

Aviation, aerospace, military communication, military electronics, automobiles, vehicle navigation, testing fixtures, testing equipment, etc.

Frequently Asked Questions

What materials are used in the plunger, barrel, and spring?

The plunger and barrel are made of high-quality Brass, while the spring is made of Stainless Steel to ensure durability and stable performance.

What are the electroplating specifications for this product?

The plunger is plated with 10 micro-inch minimum Gold (Au) over 50-120 micro-inch Nickel. The barrel has 5 micro-inch minimum Gold (Au) over 50-120 micro-inch Nickel. The spring features 1 micro-inch minimum Gold (Au) over 10-50 micro-inch Nickel.

What are the electrical ratings and specifications?

The connector supports a contact electrical resistance of 50 mOhm Maximum, a maximum rated voltage of 5V DC, and a rated current of 1.5A.

What is the mechanical durability/lifespan of the connector?

The connector has a minimum mechanical life expectancy of 10,000 cycles under normal operating conditions.

Can these connectors be used in smart wearables and consumer electronics?

Yes, they are highly suitable for intelligent wearables (like smart watches, wristbands, and Bluetooth headphones) as well as 3C consumer electronics (including laptops, tablets, and PDAs).

Are these components suitable for high-reliability medical or automotive industries?

Absolutely. The specifications support applications in medical equipment, automation, industrial systems, vehicle navigation, aviation, aerospace, and military communication systems.
